At Charbhuja Product, we pride ourselves on delivering TMT rebars that come with a host of inherent advantages — including consistent quality, uniform grades, precise dimensions, and tight tolerances. Our TMT rebars are engineered for superior stability, exceptional durability, and ease of workability, making them ideal for a wide range of construction needs.
Our advanced manufacturing facility is strategically located and fully integrated with state-of-the-art infrastructure, including a DRI Unit, EAF-based SMS Unit, Continuous Billet Casting Mill, high-capacity Rolling Mill, and fully-equipped Testing Laboratories — all housed under one roof. This integrated setup ensures streamlined production and uncompromised quality at every stage.
Charbhuja Product’s FE 550D TMT Rebars are proudly GreenPro certified, ensuring they meet strict environmental and sustainability standards.
By choosing our certified rebars, you're investing in both strength and sustainability.
Among these grades listed, Fe 550D fully complies with RDSO & IS:13920:2016 Amendment 2 requirements.
| Properties | IS 1786: Fe 550D | Charbhuja TMT Steel Fe 550D |
|---|---|---|
| 0.2% Proof Stress/YS (MPa) min | 550 | 580 |
| UTS/YS ratio | 1.08 | 1.19 |
| Elongation (Min – %) | 14.5 | 20 |
| Ultimate Tensile Strength (Min) – n/mm² | 600 | 680 |
| Total Elongation at max force (% min) | 5.0 | 6.0 |
| Constituent % Max | IS 1786: Fe 550D | Charbhuja Product Fe 550D |
|---|---|---|
| Carbon | 0.25 | 0.2 |
| Sulphur | 0.040 | 0.024 |
| Phosphorus | 0.040 | 0.034 |
| (Sulphur + Phosphorus) | 0.075 | 0.058 |
| Carbon Equivalent (Max%) | 0.6 | 0.033 |
| Properties | FE 550D TMT Rebars | Secondary Producers |
|---|---|---|
| Raw Material | Uses virgin Iron Ore/Pellets in a highly sophisticated plant, ensuring top-notch TMT Rebars | Uses scrap or ingots with no quality control |
| Manufacturing Process | Primary route (DRI–EAF/BF–BOF) ensures controlled chemistry | Uses an induction furnace, making it difficult to control steel composition |
| Integrated Process | Fully integrated manufacturing in a single location | TMT Rebars and ingots are manufactured separately, leading to inconsistency |
| Testing Facility | Computerized UTM and Spectrometer for precise testing | Traditional UTM and outdated chemical testing methods |
| Certifications | NABL-certified, Government-approved testing lab | No lab certification |
| Physical Properties | High strength, elongation and superior ductility | Inconsistent strength, elongation and ductility |
| Chemical Properties | Consistent and homogeneous for enhanced durability | Non-homogeneous, leading to quality variations |
| Bond Strength | Uniform, square RIB pattern ensures superior bonding | Weak bond strength due to non-uniform, curved RIB pattern |
| Unit Weight | Guaranteed and consistent | No weight guarantee |
| Microstructure | Uniform and refined | Non-uniform |
| Fire Resistance | Withstands temperatures up to 600°C | Can only withstand up to 250°C |
| Network and Availability | PAN India presence | Limited to local markets |
8 | 10 | 12 | 16 | 20 | 25 | 28 | 32 | 36 |

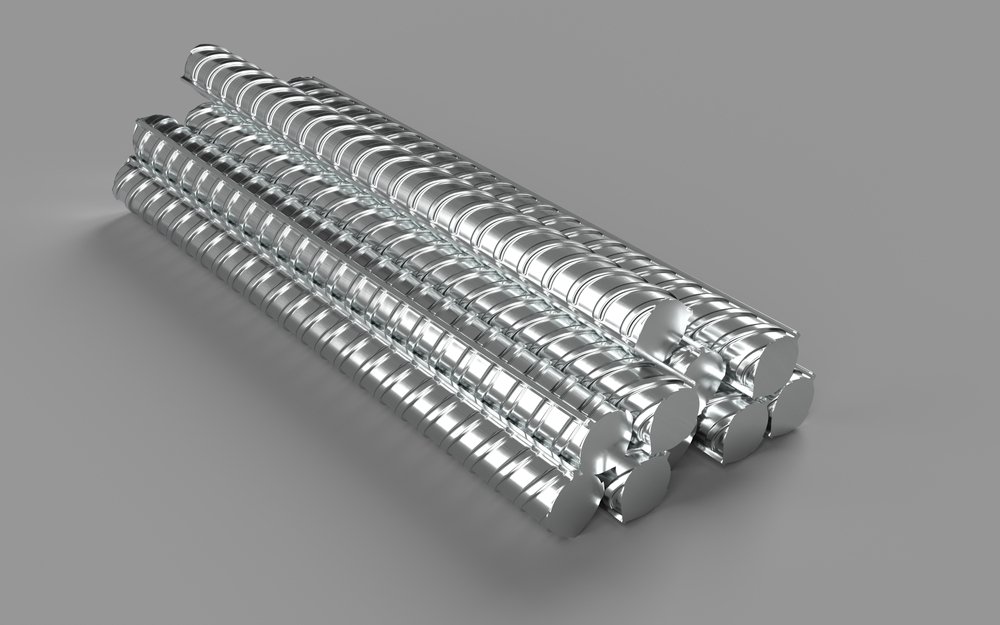

Charbhuja Product’s Fe 500D TMT Rebars are a specialized grade of reinforcement bars manufactured under precise process conditions to ensure enhanced strength compared to standard TMT grades. These rebars are perfectly suited for heavy-load RCC structures such as flyovers, bridges, dams, and other critical infrastructure where high yield strength is essential without sacrificing ductility. Along with the trusted features of Charbhuja Product TMT Rebars, Fe 500D Rebars also offer the following key advantages.
Charbhuja Product TMT Rebars do not require any pre- or post-welding treatment due to their low carbon content and precise thermomechanical manufacturing process.
The controlled thermomechanical treatment also produces a uniform and thick tempered martensitic rim that is completely free from internal stress. This martensitic rim enhances the corrosion resistance and fatigue strength of Charbhuja Product’s Fe 500D TMT Rebars when compared to other TMT rebars.
Ast = 0.85xMxD/fy where,
Ast = Area of Steel in tension M=Moment in Tension
D = Depth of Section fy =Stress of Steel in tension
Therefore, it is evident from the above calculations that higher the tensile strength, lesser is the consumption of steel.
| Type of Structure | Steel requirement by using Fe 415 | Steel requirement by using Fe500 | Saving in Steel by using Fe 500 |
|---|---|---|---|
| RCC Foundation Heavy Beam | 1.00 MT | 0.83 MT | 1.70 Kg |
Or Fe 415/415 D is 415N/mm2 and 500 N/mm2 for Fe 500D TMT Re-bars.
Charbhuja Product Steel TMT Re-bars Fe 500D is effective over usual HYSD Steel Bars. It saves upto 17% of steel.
| Description | IS: 1786 Fe 500 | Charbhuja TMT 500 TMT Re-bars | IS: 1786 Fe 500 D | Charbhuja TMT 500D TMT Re-bars |
|---|---|---|---|---|
| 0.2% Proof Stress (min N/mm²) | 500 | 540 | 500 | 560 |
| Ultimate Tensile Strength (min N/mm²) | 545 | 640 | 565 | 660 |
| % Total Elongation at max force min | – | – | 5 | 6 |
| % Elongation (min) | 12 | 18 | 16 | 20 |
| Bend | 4d to 5d | 3d to 4d | 3d to 4d | 2d to 3d |
| Rebend | 5d to 7d | 4d to 6d | 4d to 6d | 3d to 5d |
| Carbon (% max) | 0.300 | 0.250 | 0.250 | 0.220 |
| Phosphorous & Sulphur (% max) | 0.055 | 0.050 | 0.040 | 0.035 |
| Phosphorous + Sulphur (% max) | 0.105 | 0.095 | 0.075 | 0.065 |
| CE (% max) | 0.42 | 0.400 | 0.42 | 0.350 |
| Nitrogen (ppm max) | 120 | 100 | 120 | 100 |
Global demand for microalloyed low-alloyed rebars primarily comes from sectors such as power, oil and gas extraction, road and bridge construction, and port development. This demand is driven by their enhanced strength-ductility balance, corrosion resistance, and improved toughness.

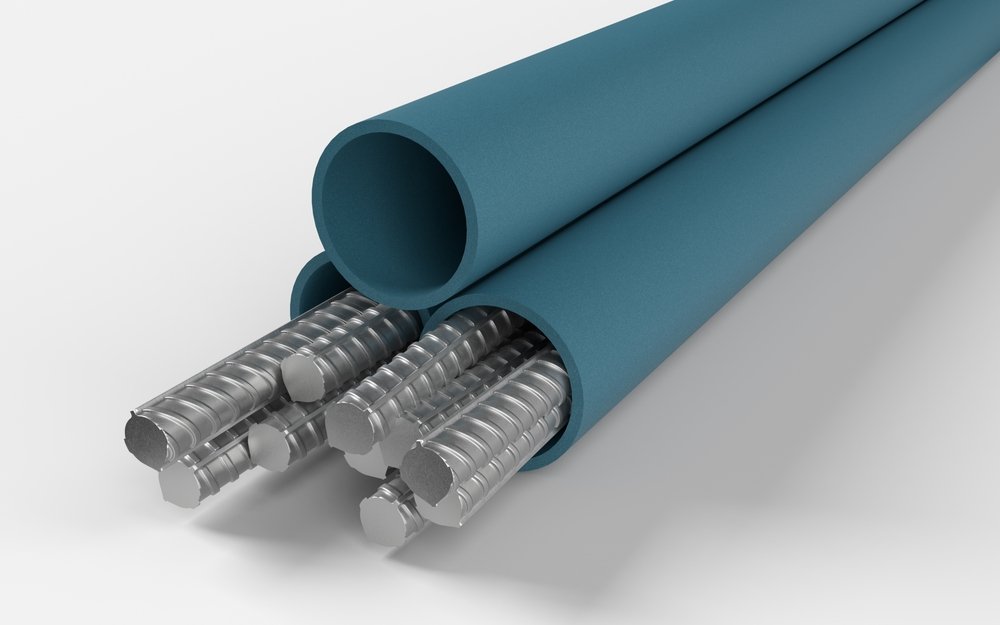

Charbhuja Product CRS TMT Rebars have undergone rigorous testing in aggressive corrosion environments and have been evaluated for multiple corrosion resistance properties as per ASTM standards including the alternate immersion test, salt spray test, atmospheric exposure test, sulfur dioxide test, and potentiodynamic test. Based on these corrosion tests, Charbhuja CRS TMT Rebars have proven to be more corrosion-resistant than conventional TMT rebars available in the market.
| Type of Test | Non CRS TMT Re-bars | CRS TMT Re-bars |
|---|---|---|
| Potentio Dynamic Test | 1.0 | 2.35 |
| Salt Spray Test | 1.0 | 1.59 |
| Sulphur Dioxide Test | 1.0 | 1.68 |
| Alternate Immersion Test | 1.0 | 1.92 |
| Size of Sariya (Diameter) | Weight per Meter (kg/mt) | Tolerance % | Rods per Bundle |
|---|---|---|---|
| 8 mm | 0.395 | +/- 7 | 18 |
| 10 mm | 0.617 | +/- 7 | 12 |
| 12 mm | 0.888 | +/- 5 | 8 |
| 16 mm | 1.579 | +/- 5 | 5 |
| 20 mm | 2.466 | +/- 3 | 3 |
| 25 mm | 3.854 | +/- 3 | 1 |
| 28 mm | 4.83 | +/- 3 | 1 |
| 32 mm | 6.314 | +/- 3 | 1 |
| 36 mm | 7.99 | +/- 3 | 1 |
| 40 mm | 9.86 | +/- 3 | 1 |
Charbhuja Product Rebars have been tested at several renowned national institutions such as IIT Kanpur and the National Test House, under real-world service conditions. The field data collected from these tests confirms the superior durability of our rebars when compared to other TMT rebars.
Charbhuja TMT CRS TMT Re-bars have been used in projects like
